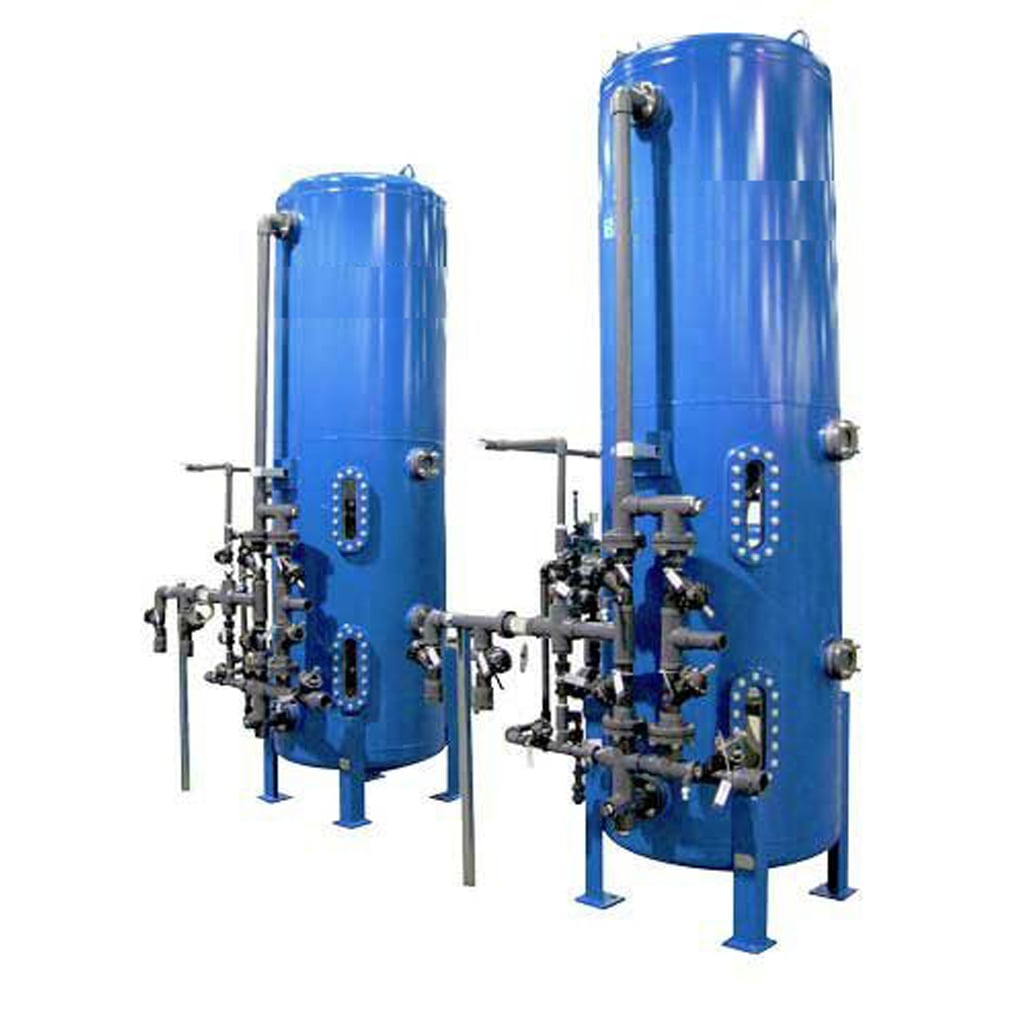

Mixed Bed Deionizers MBDI

Product features:
  • Automatic or Semi-automatic operation. Automatic regeneration when water quality falls below pre-set limit or after manual initiation.
  • Constant monitoring of water quality
  • Solid-state reliability PLC control for trouble-free service
  • No untreated by-pass water
  • Alternate regeneration water source piping - standard
  • Automatic shut down in the event of power failure
  • Two-stage air mix standard
  • Compact, non-corrosive components
  • Steel tanks with rubber lining
  • Convenient, modular construction
  • Easy, economical installation
  • Optional recirculation pumps
  • Simultaneous regeneration and chemical displacement
  • Brine kill option available for high purity systems
  • Programmable purge prior to regeneration
  • 12 volt operation (120V/60hz/1pH transformer included)
  • Guaranteed the best market price
  • Excellent support 24 hours a day, 7 days a week
  • Refund in case of dissatisfaction
  • Originality of goods from top brands
  • Fast delivery in the shortest possible time

Price: Call us

تمامی کالاهای این فروشگاه اورجینال و برند بوده و با گارانتی بازگشت وجه ارائه می شوند. متن نمایش داده در تمامی محصولات و قابل تغییر از بخش تنظیمات پوسته می باشد.

Ion Exchange can be defined as a reversible exchange of ions between a solid (resin) and a liquid containing dissolved ions. Mineral salts are comprised of cations and anions. Since deionization requires the removal of all ions, both the negatively charged anions and positively charged cations, minerals capable of attracting both are required. These materials are known as anion and cation exchange resins.

Mixed bed deionizers are fixed bed systems in which ion exchange resins are contained in pressure vessels. The water is then forced through the resin. After a service run, the resin becomes exhausted and unable to remove additional ions so it must be regenerated with strong acid and base solutions to restore its ion exchange capacity..

How Does Mixed Bed Resin Work

Water treatment operators prefer to utilize mixed bed deionization resins in order to refine product water and obtain demineralized water quality. Mixed bed is made up of durable acid cation exchange and strong base anion exchange resin.

More contaminants are exchanged by hydrogen and hydroxyl ions within this process, and the water generated is often exceptionally pure.

Standard Features:

Available Options:

  •     Automatic or Semi-automatic operation. Automatic regeneration when water quality falls below pre-set limit or after manual initiation.
  •     Constant monitoring of water quality
  •     Solid-state reliability PLC control for trouble-free service
  •     No untreated by-pass water
  •     Alternate regeneration water source piping – standard
  •     Automatic shut down in the event of power failure
  •     Two-stage air mix standard
  •     Compact, non-corrosive components
  •     Steel tanks with rubber lining
  •     Convenient, modular construction
  •     Easy, economical installation
  •     Optional recirculation pumps
  •     Simultaneous regeneration and chemical displacement
  •     Brine kill option available for high purity systems
  •     Programmable purge prior to regeneration
  •     12 volt operation (120V/60hz/1pH transformer included)
  •     Regeneration chemical tanks (hydrochloric acid & sodium hydroxide)
  •     Insulated/heated clearwell
  •     Drain neutralization system making it possible to discharge chemicals into sewer network
  •     Heating system for sodium hydroxide
  •     Air compressor
  •     Sound or light alarms for end-of-cycle notifications
  •     Brine kill for high purity systems
  •     220V/1Ph/50Hz power supply
