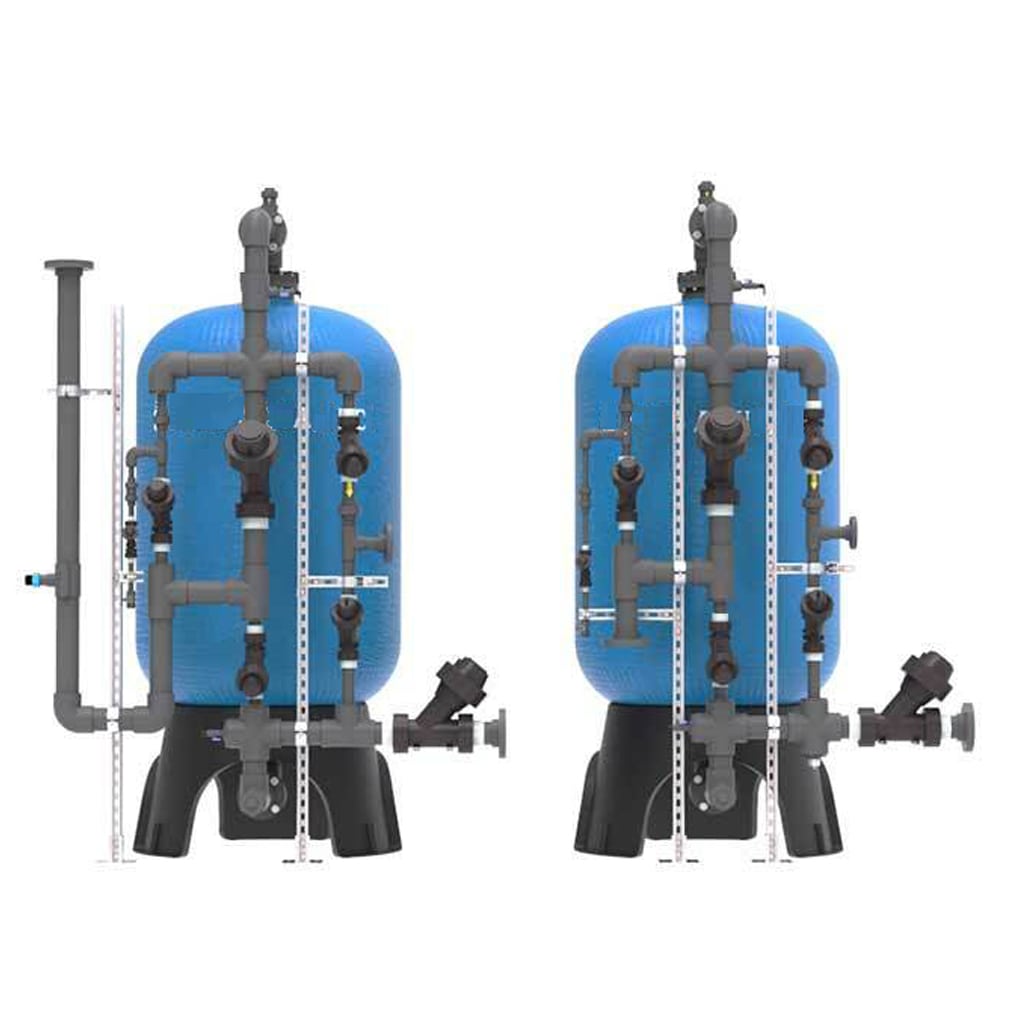

Dual Bed Deionizer DM-6000

Product features:
  • FRP tank with 150 psi rating / corrosion resistance
  • Auto regeneration on preset water quality limit
  • High quality IX resin
  • Constant monitoring of water quality
  • Solid-state reliability for trouble-free service
  • No untreated by-pass water
  • Automatic shut down in the event of power failure
  • Compact, non-corrosive components
  • Digital stager with resistivity monitor
  • Convenient, modular construction
  • Noryl diaphragm valves
  • Programmable purge prior to regeneration
  • 120V/1ph/60Hz power requirement
  • 1/4” tubing between stager and valves
  • Schedule 80 PVC face piping
  • PP/PVC sch 80 internal piping and distributor
  • Flow control
  • Drum suction pipe
  • Guaranteed the best market price
  • Excellent support 24 hours a day, 7 days a week
  • Refund in case of dissatisfaction
  • Originality of goods from top brands
  • Fast delivery in the shortest possible time

Price: Call us

تمامی کالاهای این فروشگاه اورجینال و برند بوده و با گارانتی بازگشت وجه ارائه می شوند. متن نمایش داده در تمامی محصولات و قابل تغییر از بخش تنظیمات پوسته می باشد.

Engineered for medium-sized deionization (DI) applications, these dependable units feature the same precision electronics and performance characteristics as their large-scale counterparts, all in a smaller, using diaphragm valves package. Applications cover the full spectrum of industrial, commercial, medical, boiler feed water uses. ZamZam offers a wide range of IX systems and resin types for general manufacturing and industrial applications, as well as special grades of resin for critical applications such as food & beverage, nitrate removal, arsenic removal, healthcare, biopharmaceutical and microelectronics.

Advantages of choosing a ZamZam Dual-Bed Deionizer include:

  • Two-Bed Automatic “Package” Deionizers are available in sizes from 2-8 GPM, and at rated exchange capacities:of 40,000 to 100,000 grains. These systems are fully-assembled, with all wiring and tubing completed requiring minimum installation and start-up effort. Skid mounting is an option.
  • Exchanger vessels are all non metallic construction, rated at 150 psi.
  • Piping is Schedule 80 PVC, with solvent-welded joints, rigidly supported on unit strut channels.
  • Valves-Noryl diaphragm type, pneumatically operated, with integral travel stops for flow regulation.
  • Internal distributions are PP / schedule 80 PVC and radial lateral design.
  • The provided cation resin is a high capacity strong acid, bead-form, conventional gel polystyrene sulfonated exchange resin which is shipped in the hydrogen form ready for immediate use. Resin capacity information is based on 6 lbs. of HCL per cu. ft. of exchange resin. The provided anion is a high capacity strong base, type 2, bead form, conventional gel exchange resin which is shipped in the chloride form for maximum storage life. Resin capacity information is based on 6 lbs. of NaOH per cu. ft. of exchange resin.
  • Optional stainless steel liquid filled pressure gauges, sample valves, flow indicator on water inlet, and inlet pressure reducing valve.
Pre-Treatment Systems Post-Treatment Systems Other Systems
  • Multi-media filter
  • Ultrafiltration system
  • Activated carbon filter
  • Reverse osmosis system
  • Mixed bed deionization
  • UV sterilization
  • Ozonation system
  • Activated carbon filter
  • Neutralization system
  • Distribution system
  • Degasifiers
  • Carbon Filtration

Here is Features and Available Options:



Standard Features: Standard Features: Available Options:
  • FRP tank with 150 psi rating/corrosion resistance
  • Auto regeneration on preset water quality limit
  • High-quality IX resin
  • Constant monitoring of water quality
  • Solid-state reliability for trouble-free service
  • No untreated by-pass water
  • Automatic shut down in the event of power failure
  • Compact, non-corrosive components
  • Digital stager with resistivity monitor
  • Convenient, modular construction
  • Noryl diaphragm valves
  • Programmable purge prior to regeneration
  • 120V/1ph/60Hz power requirement
  • 1/4” tubing between stager and valves
  • Schedule 80 PVC face piping
  • PP/PVC sch 80 internal piping and distributor
  • Flow control
  • Drum suction pipe
  • Duplex, triplex or multi-units
  • Skid-mounted, plumbed, and wired
  • PLC control system
  • ASME coded tanks
  • Butterfly control valves
  • 240V/1ph/50Hz power requirement
  • Recirculation pumps
  • Unistrut channel supports
  • Divert option
  • Flowmeter
