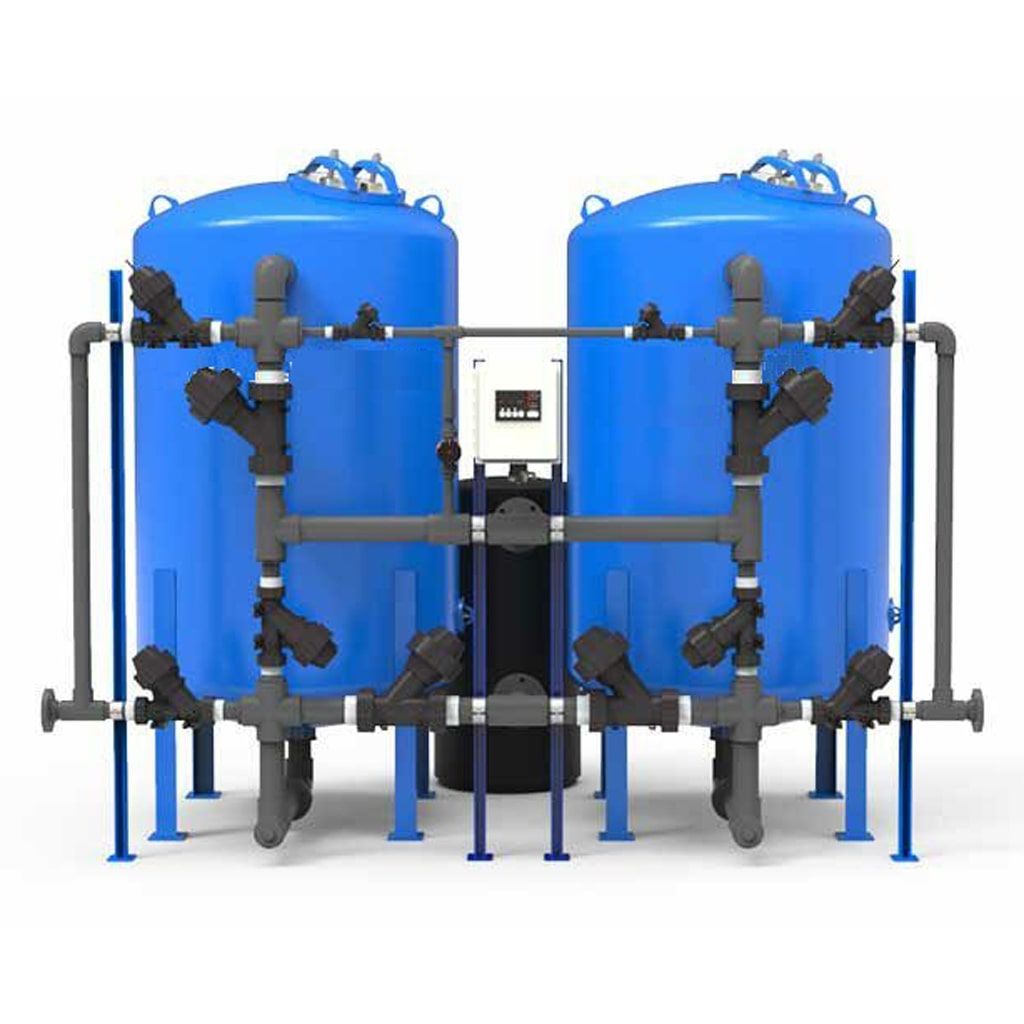

Industrial Water Softener SF-100S

Product features:
  • The Industrial Steel Tank Automatic Water Softener (SF-100S Series) softeners are designed as fully automatic units either with a timer or meter control. The timer control initiates softener regeneration at any predetermined time - on any or every day. The metered models start regeneration based on the total gallons used.
  • The steel mineral tank is engineered for a 100 psi working pressure and is tested to 150 psi. It is equipped with a manhole in the upper dome.
  • The interior of the tank is coated with epoxy for protection against rust and corrosion. The exterior has a rust inhibiting primer coat.
  • A premium grade sulfanated nonphenolic polystyrene type resin is contained in the mineral tank. The resin will deliver 30,000 grains per cubic foot when brined at a rate of 15 lbs. per cubic foot.
  • The brine tank is a combination of high density polystyrene brine measuring tank and a brine valve, including an air eliminator valve and a safety brine refill shut off to prevent tank overflow.
  • The automatic regeneration controller features a choice of 7 or 12 day calendar wheels. Time of regeneration and length of time for each regeneration cycle are fully adjustable.
  • The under drain utilizes either a hub & lateral or a header & lateral system to evenly distribute water and prevent resin loss, and to insure minimal pressure drop at peak flow rates.
  • Guaranteed the best market price
  • Excellent support 24 hours a day, 7 days a week
  • Refund in case of dissatisfaction
  • Originality of goods from top brands
  • Fast delivery in the shortest possible time

Price: Call us

تمامی کالاهای این فروشگاه اورجینال و برند بوده و با گارانتی بازگشت وجه ارائه می شوند. متن نمایش داده در تمامی محصولات و قابل تغییر از بخش تنظیمات پوسته می باشد.

ZamZam offers top-notch water softeners that can provide clean water for your industrial applications. Our industrial water softeners have helped hundreds of clients eliminate water hardness problems on important equipment such as boiler feeds, cooling towers, heat-exchangers, etc.

Industrial Water Softener Process

ZamZam’s industrial water softeners treat the water by removing hardness using resin. The resin replaces the hardness in the water with salt which is regenerated periodically. The softened water can then pass through an RO system to remove the salt without the risk of scaling. Softeners can be used in a variety of services including: industrial, municipal, and institutional applications.

An Industrial water softener is sized on the basis of two different parameters:

  • Exchange capacity – which is the quantity of water delivered between regenerations, and it depends upon the amount of ion exchange resin in the softener and quantity of salt used for resin regeneration.
  • Maximum flow rate – which is the maximum quantity of water required at any peak usage period, and is an important datum in case of non-continuous water delivery and is measured in gallons per minute (GPM)

ZamZam supplies a full line of standard and fully customizable water softener systems, all of which are engineered using advanced 3D computer modeling software for accurate and customized solutions, and we have several satisfied clients all around the world that use our industrial water softener solutions.

Standard Features: Available Options:
  • The Industrial Steel Tank Automatic Water Softener (SF-100S Series) softeners are designed as fully automatic units either with a timer or meter control. The timer control initiates softener regeneration at any predetermined time – on any or every day. The metered models start regeneration based on the total gallons used.
  • The steel mineral tank is engineered for a 100 psi working pressure and is tested to 150 psi. It is equipped with a manhole in the upper dome.
  • The interior of the tank is coated with epoxy for protection against rust and corrosion. The exterior has a rust inhibiting primer coat.
  • A premium grade sulfanated nonphenolic polystyrene type resin is contained in the mineral tank. The resin will deliver 30,000 grains per cubic foot when brined at a rate of 15 lbs. per cubic foot.
  • The brine tank is a combination of high density polystyrene brine measuring tank and a brine valve, including an air eliminator valve and a safety brine refill shut off to prevent tank overflow.
  • The automatic regeneration controller features a choice of 7 or 12 day calendar wheels. Time of regeneration and length of time for each regeneration cycle are fully adjustable.
  • The under drain utilizes either a hub & lateral or a header & lateral system to evenly distribute water and prevent resin loss, and to insure minimal pressure drop at peak flow rates.
  • Duplex, triplex or multi units
  • Skid mounted, plumbed, wired systems
  • ASME code stamped resin tanks
  • PLC control system
  • Alternate water meter types
  • Brine pump systems
  • PVC or CPVC face piping
  • Stainless steel face piping
  • Stainless steel internal distribute piping
  • Butterfly control valves
  • Inline hardness monitor
  • Unistrut channel supports
