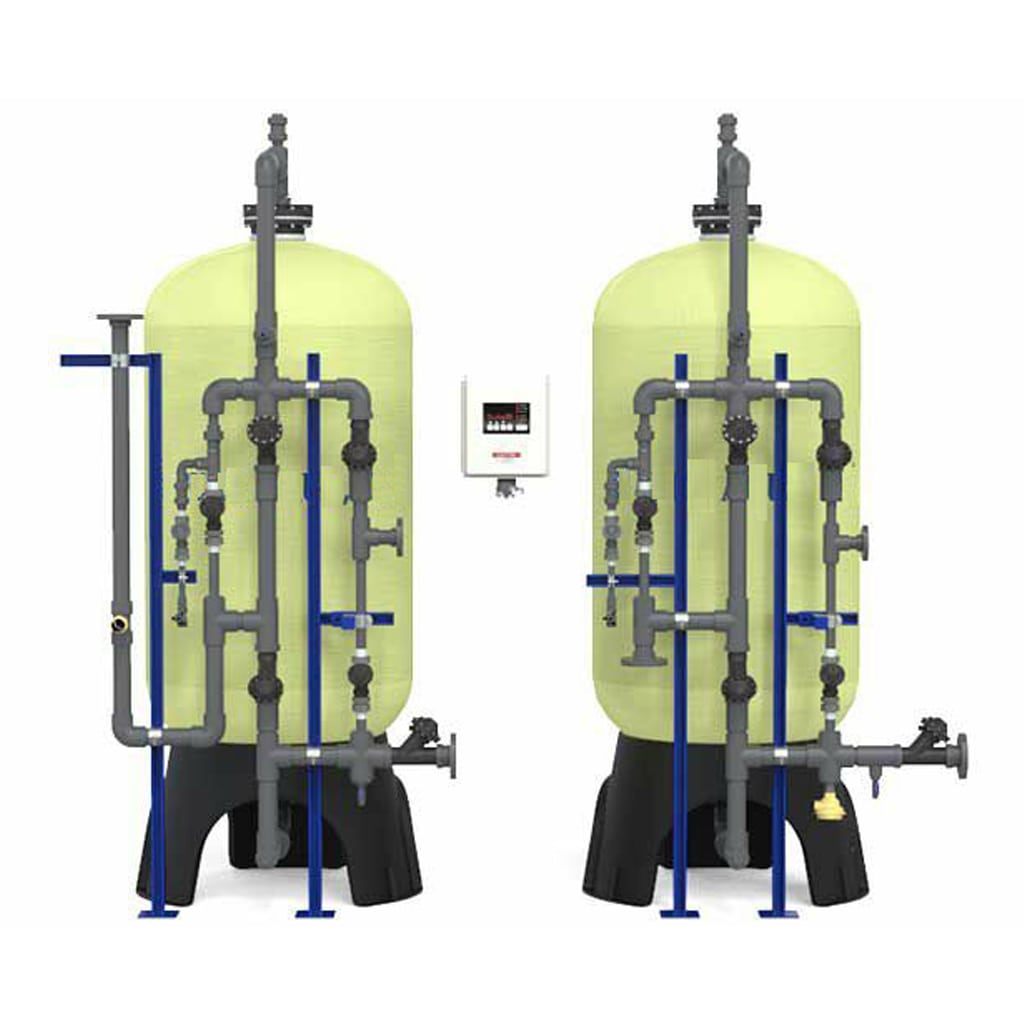

Industrial Water Deionizer DM-6100

Product features:
  • FRP tank with 150 psi rating / corrosion resistance
  • Auto regeneration on preset water quality limit
  • High quality IX resin
  • Constant monitoring of water quality
  • Solid-state reliability for trouble-free service
  • No untreated by-pass water
  • Automatic shut down in the event of power failure
  • Compact, non-corrosive components
  • Digital stager with resistivity monitor
  • Convenient, modular construction
  • Noryl diaphragm valves
  • Programmable purge prior to regeneration
  • 120V/1ph/60Hz power requirement
  • 1/4” tubing between stager and valves
  • Schedule 80 PVC face piping
  • PP/PVC sch 80 internal piping and distributor
  • Flow control
  • Divert
  • Flow meter
  • Drum suction pipe
  • Guaranteed the best market price
  • Excellent support 24 hours a day, 7 days a week
  • Refund in case of dissatisfaction
  • Originality of goods from top brands
  • Fast delivery in the shortest possible time

Price: Call us

تمامی کالاهای این فروشگاه اورجینال و برند بوده و با گارانتی بازگشت وجه ارائه می شوند. متن نمایش داده در تمامی محصولات و قابل تغییر از بخش تنظیمات پوسته می باشد.

Engineered for large-sized deionization (DI) applications, these dependable units feature precise electronics and performance characteristics, using diaphragm valves package. Applications cover the full spectrum of industrial, medical, electronics manufacturing, boiler feed water, and chemical manufacturing uses. ZamZam supplies a full line of standard and fully customizable industrial water deionizer systems, all of which are engineered using advanced 3D computer modeling and process design software for accurate and customized solutions.

ZamZam, Inc. is a global leading manufacturer of industrial water deionization systems designed for efficient removal of dissolved salts and minerals. These water treatment systems produce high purity water for industrial applications. We also design and manufacture a complete line of ion-selective resin deionization systems to remove selective ions such as nitrates, arsenic, silica, boron, fluoride or to meet your water quality requirements.

Advantages Of A Industrial Water Deionizer System (DM-6100 Series)

  • Two-Bed Automatic “Package” Deionizers are available in sizes from 11-43 GPM, and at rated exchange capacities of 200,000 to 800,000 grains. These systems are fully-assembled, with all wiring and tubing completed requiring minimum installation and start-up effort. Skid mounting is an option.
  • Exchanger’s vessels are all nonmetallic construction, rated at 150 psi.
  • Piping is Schedule 80 PVC, with solvent-welded joints, rigidly supported on unit strut channels.
  • Valves-Noryl diaphragm type, pneumatically operated, with integral travel, stops for flow regulation.
  • Internal distributions are PP/schedule 80 PVC and radial lateral design.
  • The provided cation resin is a high capacity strong acid, bead-form, conventional gel polystyrene sulfonated exchange resin which is shipped in the hydrogen form ready for immediate use. Resin capacity information is based on 6 lbs. of HCL per cu. ft. of exchange resin. The provided anion is a high capacity strong base, type 2, bead form, conventional gel exchange resin which is shipped in the chloride form for maximum storage life. Resin capacity information is based on 6 lbs. of NaOH per cu. ft. of exchange resin.
  • Optional stainless steel liquid filled pressure gauges, sample valves, flow indicator on water inlet, and inlet pressure reducing valve.

Pre-Treatment Systems

Post-Treatment Systems

Other Systems

  • Multi-media filter
  • Ultrafiltration system
  • Activated carbon filter
  • Reverse osmosis system
  • Mixed bed deionization
  • UV sterilization
  • Ozonation system
  • Activated carbon filter
  • Neutralization system
  • Distribution system
  • Degasifiers

Standard Features:

Standard Features:

Available Options:

  • FRP tank with 150 psi rating / corrosion resistance
  • Auto regeneration on preset water quality limit
  • High quality IX resin
  • Constant monitoring of water quality
  • Solid-state reliability for trouble-free service
  • No untreated by-pass water
  • Automatic shut down in the event of power failure
  • Compact, non-corrosive components
  • Digital stager with resistivity monitor
  • Convenient, modular construction
  • Noryl diaphragm valves
  • Programmable purge prior to regeneration
  • 120V/1ph/60Hz power requirement
  • 1/4” tubing between stager and valves
  • Schedule 80 PVC face piping
  • PP/PVC sch 80 internal piping and distributor
  • Flow control
  • Divert
  • Flow meter
  • Drum suction pipe
  • Duplex, triplex or multi units
  • Skid mounted, plumbed and wired
  • PLC control system
  • ASME coded tanks
  • Butterfly control valves
  • 240V/1ph/50Hz power requirement
  • Recirculation pumps
  • Unistrut channel supports
