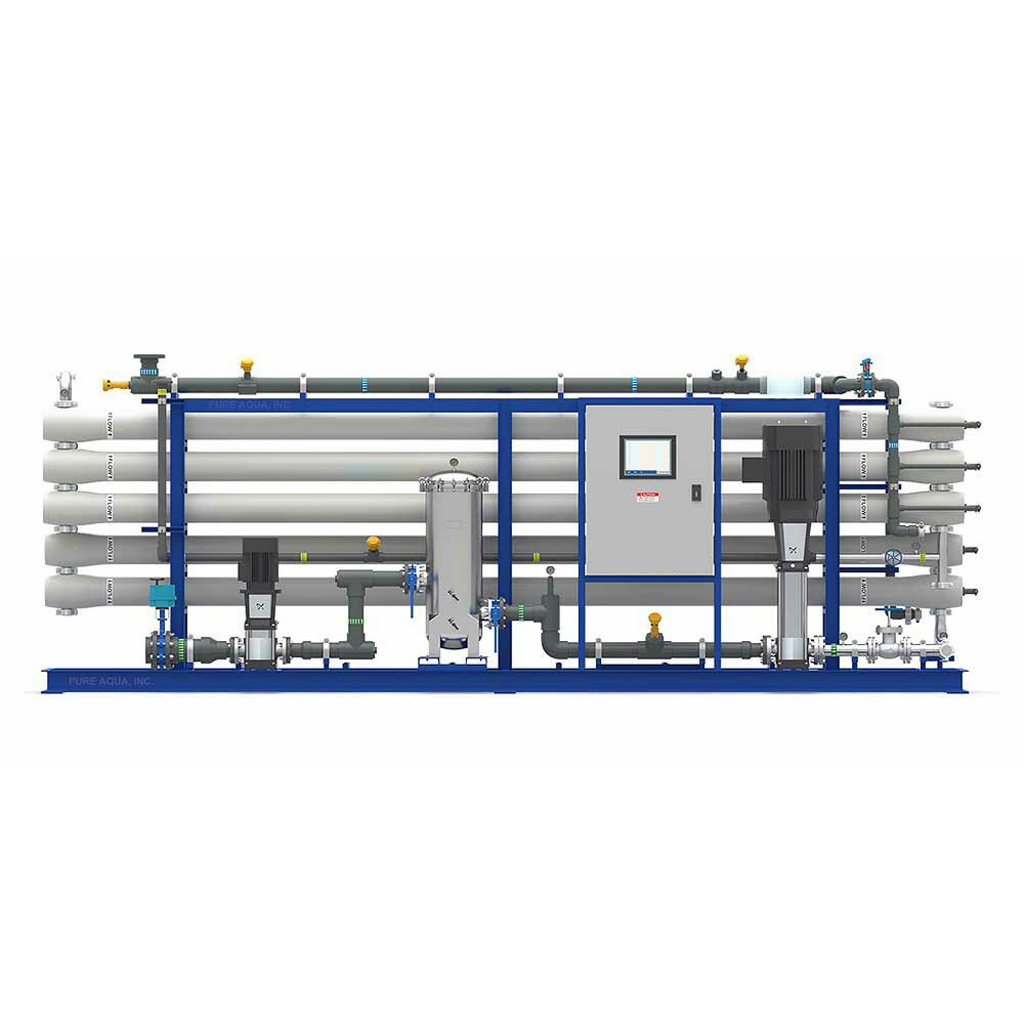

Industrial Nanofiltration NF Systems NF-500

Product features:
  • Powder coated carbon steel frame
  • 8” TFC spiral wound membranes
  • Stainless steel multi-stage pump with TEFC motor
  • FRP membrane housing
  • 5 micron cartridge prefilter
  • 460V/3Ph/60Hz power requirement
  • PLC based control panel
  • Programmable time delay and set points
  • Status indicators
  • Motor starter
  • NEMA 12 enclosure
  • Low pressure switch
  • High pressure switch
  • Liquid filled pressure gauges
  • Permeate conductivity monitor
  • Permeate & concentrate flow meters
  • Guaranteed the best market price
  • Excellent support 24 hours a day, 7 days a week
  • Refund in case of dissatisfaction
  • Originality of goods from top brands
  • Fast delivery in the shortest possible time

Price: Call us

تمامی کالاهای این فروشگاه اورجینال و برند بوده و با گارانتی بازگشت وجه ارائه می شوند. متن نمایش داده در تمامی محصولات و قابل تغییر از بخش تنظیمات پوسته می باشد.

Nanofiltration systems offer industrial plants with additional benefits that reverse osmosis fails to provide. Such advantages include the consumption of less water, more efficient in removing hardness (suspended solids) than RO, including foul taste and smell problems.

Industrial nanofiltration systems are designed with advanced nanotechnology for the purposes of improving the capability of removing extremely high TDS levels from water. These NF systems are built-in with elastic features that have fewer maintenance requirements than RO systems and water softeners, including being less prone to fouling.

Industrial users favor the utilization of nanofiltration systems over RO systems due to its greater capacity in allowing the passage of designed minerals and preventing the passage of unwanted organic compounds. This feature makes nanofiltration ideal in treating water sources that contain high degrees of bivalent ions such as calcium, magnesium, uranium and radium.

NF systems also have earned its reputation as being the most efficient hardness removing membrane technology on the market through targeting and eliminating hardness from water. Just as reverse osmosis systems are efficient in eradicating color, viruses, bacteria, and organic substances, nanofiltration provides the same productivity, along with removing other impurities such as pesticides, and microorganisms. All of these qualities result in the production of high-quality freshwater at a lower cost due to nanofiltration systems using less energy than RO systems.

ZamZam manufactures and distributes a complete category of tailor-made nanofiltration systems, which come equipped with advanced 3D computer modeling and process design software for precise and custom-made solutions.

Standard Features: Available Options:
  • Powder coated carbon steel frame
  • 8” TFC spiral wound membranes
  • Stainless steel multi-stage pump with TEFC motor
  • FRP membrane housing
  • 5 micron cartridge prefilter
  • 460V/3Ph/60Hz power requirement
  • PLC based control panel
  • Programmable time delay and set points
  • Status indicators
  • Motor starter
  • NEMA 12 enclosure
  • Low pressure switch
  • High pressure switch
  • Liquid filled pressure gauges
  • Permeate conductivity monitor
  • Permeate & concentrate flow meters



  • Remote monitor/control option
  • Feed water conductivity monitor
  • Membrane cleaning skid
  • Automatic hourly flush
  • Feed/Permeate blending
  • Export crating
  • 220V or 380-415V/3Ph/50 or 60 Hz
  • Product tank level switch
  • Feed pH controller with sensor
  • Feed ORP controller with sensor
  • Water and hour meters
  • Chemical dosing systems
  • Media and Iron prefiltration systems
  • Ozonation and UV sterilization systems
  • Water softeners
  • Post RO systems
  • Containerized NF systems
