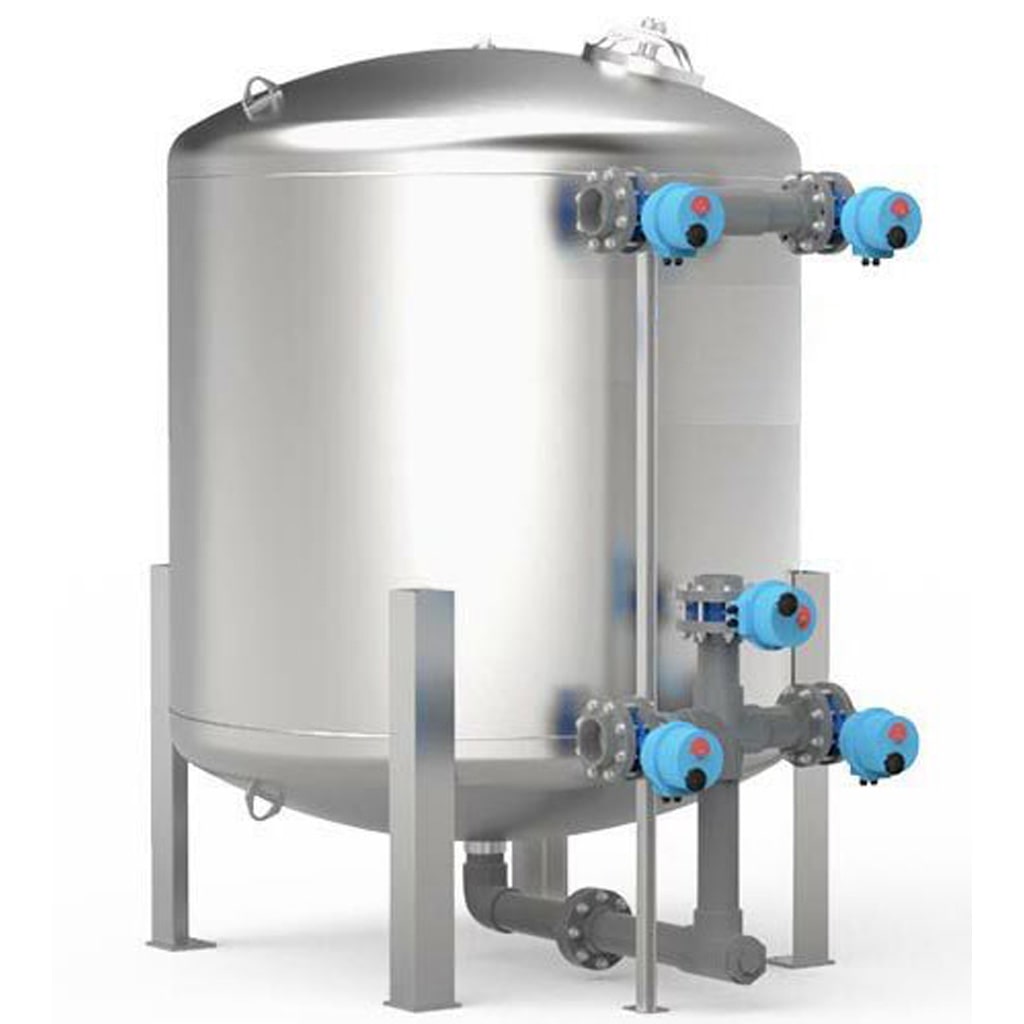

Industrial Stainless Tank Water Media Filter MF-1100

Product features:
  • 1”-3” Noryl diaphragm valves or butterfly valves for 4” or larger
  • Digital stager for filters using diaphragm valves or PLC for butterfly valves
  • 115V/1Ph/60Hz power supply
  • Stainless steel tank with 100 psi rating
  • Top loading port
  • Schedule 80 PVC face piping
  • PP/PVC sch 80 internal piping and distributor
  • Vent and drain ports
  • High quality
  • Guaranteed the best market price
  • Excellent support 24 hours a day, 7 days a week
  • Refund in case of dissatisfaction
  • Originality of goods from top brands
  • Fast delivery in the shortest possible time

Price: Call us

تمامی کالاهای این فروشگاه اورجینال و برند بوده و با گارانتی بازگشت وجه ارائه می شوند. متن نمایش داده در تمامی محصولات و قابل تغییر از بخش تنظیمات پوسته می باشد.

ZamZam pressure filters can be used in a variety of service conditions including, but not limited to: industrial, municipal, and institutional applications. ZamZam’s pressure filters clarify water by removing sediment, turbidity, iron, unpleasant tastes and odors, suspended particles, and unwanted color, all of which are commonly found in surface water. ZamZam supplies a full line of standard and fully customizable water filtration systems, all of which are engineered using advanced 3D computer modeling software for accurate and customized solutions.

Filter Media Types

  • Sand is the most common filter media. Generally, fine mesh sand is coupled with a course grain support bed to remove suspended solids and turbidity. Graded in various ranges, ZamZam sand can be used as filtration medium or under bedding depending on particle size and application.
  • Gravel has a highly spherical shape that promotes good flow and even distribution in support beds.
  • Calcite media is a specially graded calcium carbonate compound for neutralizing acid with consistent dissolving rates for water treatment.
  • Manganese Greensand media is treated siliceous material for treating water containing iron, manganese, and hydrogen sulfide through oxidation.
  • Anthracite is recommended as a filter medium where additional silica in the water is not desirable and can remove lighter weight turbidity. Anthracite is typically used in applications where silica pick-up is undesirable.
  • Activated carbon medium is used to remove taste, odor, organic contaminants, and chlorine as well as being used in many drinking water applications.
  • ProSand is based on a rare natural mineral. Its unique properties radically improve the performance and cost of media filtration.
  • Filter AG is non-hydrous silicon dioxide with many advantages for the reduction of suspended matter.
  • Multimedia is required when maximum quality water is required and unwanted sediment is too small to be removed by standard media. It consists of multiple layers of increasing grain size to remove sediment as small as 10 microns.

Advantages of Multimedia Filtration

  • Relatively inexpensive, no recurring cost of consumables
  • Proven process and most tested forms of water treatment
  • Systems are robust with no moving parts inside the tanks
  • Modular control valves designed for operational flexibility
  • Filtration media is inexpensive and long-lasting
  • Easily cleaned and maintained
  • Resistant to fouling (clogging)

Multimedia Filtration Operating Cycles

Service Cycle

Water flows downward through the media while solids accumulate in the media bed. The purified water passes through to downstream processes.

Backwash Cycle

When the filter begins to clog or when the head loss (pressure drop) through the bed increases, flow rates are reduced. To prevent degradation of water quality, the flow is reversed. This is directed by the control valve(s) to drain, carrying with it, the particulate matter that has built up during service. The required flow is specific to the media and is essential to proper cleaning of the media bed. For media filters, the backwash flow is always higher than the service flow rate.

Standard Features:

Available Options:

  • 1”-3” Noryl diaphragm valves or butterfly valves for 4” or larger
  • Digital stager for filters using diaphragm valves or PLC for butterfly valves
  • 115V/1Ph/60Hz power supply
  • Stainless steel tank with 100 psi rating
  • Top loading port
  • Schedule 80 PVC face piping
  • PP/PVC sch 80 internal piping and distributor
  • Vent and drain ports
  • High quality
  • Differential pressure initiation for backwash
  • Butterfly valves, air or electrically operated
  • 240V/1Ph/50Hz power supply
  • NEMA 4 or NEMA 4X enclosures
  • Tanks according to ASME code
  • Tanks with a higher pressure rating
  • 316 SS or galvanized iron face piping
  • Inlet / Outlet 316 SS pressure gauges
  • Inlet / Outlet sample valves
  • Manual or automatic air vent valve
  • Vacuum breaker
  • Flanged piping connection
  • Unistrut channel supports
